Products and Size Range

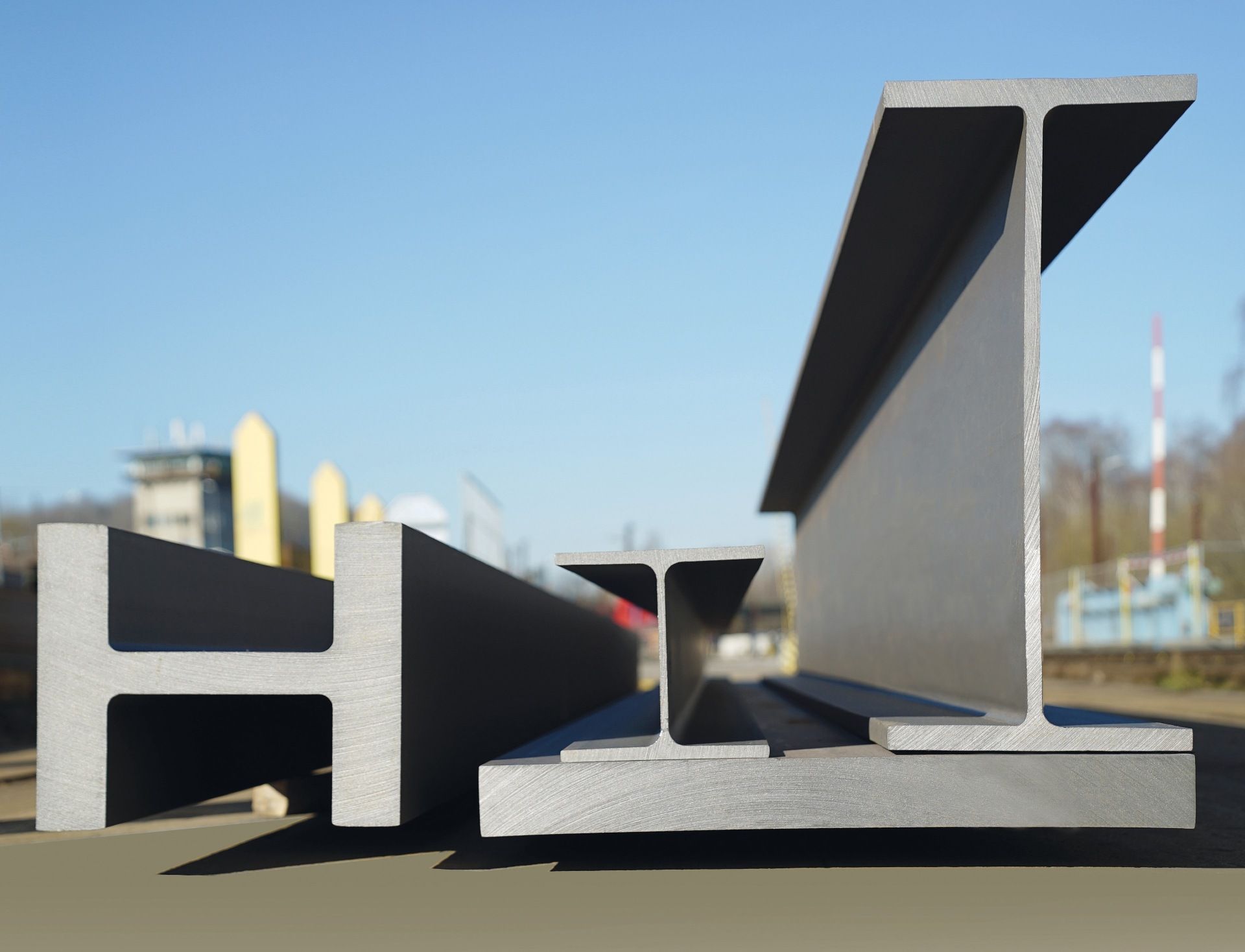

Global Leaders in Structural Steel: Producing Sections as Large as W14x1000 and W36x925

ArcelorMittal offers the largest range of section sizes of any steel producer in the world, providing steel solutions for the most challenging projects. This includes the largest jumbo shapes produced globally, such as the W14x930, W14x1000, and W36x925. Explore our availability chart below to view the complete range of steel sizes we offer

Grade Availability

Our most commonly supplied specifications in North America are A913, A992, A709, A572, A588 and dual-certified A572/A992. We are also equipped to produce most sections to meet CSA standards. Weathering steel, material meeting low-temperature CVN requirements and additional grades are available upon request.

Length Capabilities

Standard shipping lengths are 30 to 60 feet and can be ordered in four-inch increments. Other lengths, ranging from more than 60 feet up to 90 feet, are available subject to agreement. Extra-long lengths can be supplied subject to special conditions.

Shapes and Sizes

Section	Weight	A	d	b_f	t_w	t_f	Availability
lb/ft		in²	in.	in.	in.	in.	A992	A913 Gr 50+65	A913 Gr 70	A913 Gr 80	A709	A588
W44x408	408	120	44.8	16.1	1.22	2.17
W44x368	368	109	44.4	16.0	1.10	1.97
W44X335	335	98.5	44.0	15.9	1.03	1.77
W44X290	290	85.4	43.6	15.8	0.865	1.58
W44X262	262	77.2	43.3	15.8	0.785	1.42
W44X230	230	67.8	42.9	15.8	0.710	1.22
W40x655	655	193	43.6	16.9	1.97	3.54
W40X593	593	174	43.0	16.7	1.79	3.23
W40X503	503	148	42.1	16.4	1.54	2.76
W40X431	431	127	41.3	16.2	1.34	2.36
W40X397	397	117	41.0	16.1	1.22	2.20
W40X392	392	116	41.6	12.4	1.42	2.52
W40X372	372	110	40.6	16.1	1.16	2.05
W40X362	362	106	40.6	16.0	1.12	2.01
W40X331	331	97.7	40.8	12.2	1.22	2.13
W40X327	327	95.9	40.8	12.1	1.18	2.13
W40X324	324	95.3	40.2	15.9	1.00	1.81
W40X297	297	87.3	39.8	15.8	0.930	1.65
W40X294	294	86.2	40.4	12.0	1.06	1.93
W40X278	278	82.3	40.2	12.0	1.03	1.81
W40X277	277	81.5	39.7	15.8	0.830	1.58
W40X264	264	77.4	40.0	11.9	0.960	1.73
W40X249	249	73.5	39.4	15.8	0.750	1.42
W40X235	235	69.1	39.7	11.9	0.830	1.58
W40X215	215	63.5	39.0	15.8	0.650	1.22
W40X211	211	62.1	39.4	11.8	0.750	1.42
W40X199	199	58.8	38.7	15.8	0.650	1.07
W40X183	183	53.3	39.0	11.8	0.650	1.20
W40X167	167	49.3	38.6	11.8	0.650	1.03
W40X149	149	43.8	38.2	11.8	0.630	0.830
W36X925	925	272	43.1	18.6	3.02	4.53
W36X853	853	251	43.1	18.2	2.52	4.53
W36X802	802	236	42.6	18.0	2.38	4.29
W36X723	723	213	41.8	17.8	2.17	3.90
W36X652	652	192	41.1	17.6	1.97	3.54
W36X529	529	156	39.8	17.2	1.61	2.91
W36X487	487	143	39.3	17.1	1.50	2.68
W36X441	441	130	38.9	17.0	1.36	2.44
W36X395	395	116	38.4	16.8	1.22	2.20
W36X387	387	114	39.1	12.7	1.42	2.56
W36X361	361	106	38.0	16.7	1.12	2.01
W36X350	350	103	38.6	12.6	1.30	2.32
W36X330	330	96.9	37.7	16.6	1.02	1.85
W36X318	318	93.4	38.2	12.4	1.18	2.13
W36X302	302	89.0	37.3	16.7	0.945	1.68
W36X286	286	83.9	37.8	12.3	1.06	1.93
W36X282	282	82.9	37.1	16.6	0.885	1.57
W36X262	262	77.2	36.9	16.6	0.840	1.44
W36X256	256	75.3	37.4	12.2	0.960	1.73
W36X247	247	72.5	36.7	16.5	0.800	1.35
W36X232	232	68.0	37.1	12.1	0.870	1.57
W36X231	231	68.2	36.5	16.5	0.760	1.26
W36X210	210	61.9	36.7	12.2	0.830	1.36
W36X194	194	57.0	36.5	12.1	0.765	1.26
W36X182	182	53.6	36.3	12.1	0.725	1.18
W36X170	170	50.0	36.2	12.0	0.680	1.10
W36X160	160	47.0	36.0	12.0	0.650	1.02
W36X150	150	44.3	35.9	12.0	0.625	0.940
W36X135	135	39.9	35.6	12.0	0.600	0.790
W33X387	387	114	36.0	16.2	1.26	2.28
W33X354	354	104	35.6	16.1	1.16	2.09
W33X318	318	93.7	35.2	16.0	1.04	1.89
W33X291	291	85.6	34.8	15.9	0.960	1.73
W33X263	263	77.4	34.5	15.8	0.870	1.57
W33X241	241	71.1	34.2	15.9	0.830	1.40
W33X221	221	65.3	33.9	15.8	0.775	1.28
W33X201	201	59.1	33.7	15.7	0.715	1.15
W33X169	169	49.5	33.8	11.5	0.670	1.22
W33X152	152	44.9	33.5	11.6	0.635	1.06
W33X141	141	41.5	33.3	11.5	0.605	0.960
W33X130	130	38.3	33.1	11.5	0.580	0.855
W33X118	118	34.7	32.9	11.5	0.550	0.740
W30X391	391	115	33.2	15.6	1.36	2.44
W30X357	357	105	32.8	15.5	1.24	2.24
W30X326	326	95.9	32.4	15.4	1.14	2.05
W30X292	292	86.0	32.0	15.3	1.02	1.85
W30X261	261	77.0	31.6	15.2	0.930	1.65
W30X235	235	69.3	31.3	15.1	0.830	1.50
W30X211	211	62.3	30.9	15.1	0.775	1.32
W30X191	191	56.1	30.7	15.0	0.710	1.19
W30X173	173	50.9	30.4	15.0	0.655	1.07
W30X148	148	43.6	30.7	10.5	0.650	1.18
W30X132	132	38.8	30.3	10.5	0.615	1.00
W30X124	124	36.5	30.2	10.5	0.585	0.930
W30X116	116	34.2	30.0	10.5	0.565	0.850
W30X108	108	31.7	29.8	10.5	0.545	0.760
W30X99	99	29.0	29.7	10.5	0.520	0.670
W30X90	90	26.3	29.5	10.4	0.470	0.610
W27X539	539	159	32.5	15.3	1.97	3.54
W27X368	368	109	30.4	14.7	1.38	2.48
W27X336	336	99.2	30.0	14.6	1.26	2.28
W27X307	307	90.2	29.6	14.4	1.16	2.09
W27X281	281	83.1	29.3	14.4	1.06	1.93
W27X258	258	76.1	29.0	14.3	0.98	1.77
W27X235	235	69.4	28.7	14.2	0.91	1.61
W27X217	217	63.9	28.4	14.1	0.83	1.50
W27X194	194	57.1	28.1	14	0.75	1.34
W27X178	178	52.5	27.8	14.1	0.73	1.19
W27X161	161	47.6	27.6	14	0.66	1.08
W27X146	146	43.2	27.4	14.0	0.61	0.98
W27X129	129	37.8	27.6	10	0.61	1.1
W27X114	114	33.6	27.3	10.1	0.57	0.93
W27X102	102	30	27.1	10	0.515	0.83
W27X94	94	27.6	26.9	10	0.49	0.745
W27X84	84	24.7	26.7	10	0.46	0.64
W24x370	370	109	28.0	13.7	1.52	2.72
W24X335	335	98.3	27.5	13.5	1.38	2.48
W24X306	306	89.7	27.1	13.4	1.26	2.28
W24X279	279	81.9	26.7	13.3	1.16	2.09
W24X250	250	73.5	26.3	13.2	1.04	1.89
W24X229	229	67.2	26	13.1	0.96	1.73
W24X207	207	60.7	25.7	13.0	0.87	1.57
W24X192	192	56.5	25.5	13	0.81	1.46
W24X176	176	51.7	25.2	12.9	0.75	1.34
W24X162	162	47.8	25	13	0.705	1.22
W24X146	146	43	24.7	12.9	0.65	1.09
W24X131	131	38.6	24.5	12.9	0.605	0.96
W24X117	117	34.4	24.3	12.8	0.55	0.85
W24X104	104	30.7	24.1	12.8	0.5	0.75
W24X103	103	30.3	24.5	9.0	0.55	0.98
W24X94	94	27.7	24.3	9.07	0.515	0.875
W24X84	84	24.7	24.1	9.0	0.47	0.77
W24X76	76	22.4	23.9	8.99	0.44	0.68
W24X68	68	20.1	23.7	8.97	0.415	0.585
W24X62	62	18.2	23.7	7.04	0.43	0.59
W24X55	55	16.2	23.6	7.01	0.395	0.505
W21X275	275	81.8	24.1	12.9	1.22	2.19
W21X248	248	73.8	23.7	12.8	1.10	1.99
W21X223	223	66.5	23.4	12.7	1	1.79
W21X201	201	59.3	23	12.6	0.91	1.63
W21X182	182	53.6	22.7	12.5	0.83	1.48
W21X166	166	48.8	22.5	12.4	0.75	1.36
W21X147	147	43.2	22.1	12.5	0.72	1.15
W21X132	132	38.8	21.8	12.4	0.65	1.04
W21X122	122	35.9	21.7	12.4	0.6	0.96
W21X111	111	32.6	21.5	12.3	0.55	0.88
W21X101	101	29.8	21.4	12.3	0.5	0.8
W21X93	93	27.3	21.6	8.42	0.58	0.93
W21X83	83	24.4	21.4	8.36	0.515	0.835
W21X73	73	21.5	21.2	8.3	0.455	0.74
W21X68	68	20	21.1	8.27	0.43	0.685
W21X62	62	18.3	21	8.24	0.4	0.615
W21X57	57	16.7	21.1	6.56	0.405	0.65
W21X55	55	16.2	20.8	8.22	0.375	0.522
W21X50	50	14.7	20.8	6.53	0.38	0.535
W21X48	48	14.1	20.6	8.14	0.35	0.43
W21X44	44	13	20.7	6.5	0.35	0.45
W18X311	311	91.6	22.3	12.0	1.52	2.74
W18X283	283	83.3	21.9	11.9	1.40	2.50
W18X258	258	76	21.5	11.8	1.28	2.30
W18X234	234	68.6	21.1	11.7	1.16	2.11
W18X211	211	62.3	20.7	11.6	1.06	1.91
W18X192	192	56.2	20.4	11.5	0.96	1.75
W18X175	175	51.4	20	11.4	0.89	1.59
W18X158	158	46.3	19.7	11.3	0.81	1.44
W18X143	143	42	19.5	11.2	0.73	1.32
W18X130	130	38.3	19.3	11.2	0.67	1.2
W18X119	119	35.1	19	11.3	0.66	1.06
W18X106	106	31.1	18.7	11.2	0.59	0.94
W18X97	97	28.5	18.6	11.1	0.54	0.87
W18X86	86	25.3	18.4	11.1	0.48	0.77
W18X76	76	22.3	18.2	11.0	0.43	0.68
W18X71	71	20.9	18.5	7.64	0.495	0.81
W18X65	65	19.1	18.4	7.59	0.45	0.75
W18X60	60	17.6	18.2	7.56	0.415	0.695
W18X55	55	16.2	18.1	7.53	0.39	0.63
W18X50	50	14.7	18	7.5	0.355	0.57
W18X46	46	13.5	18.1	6.06	0.36	0.605
W18X40	40	11.8	17.9	6.02	0.315	0.525
W18X35	35	10.3	17.7	6	0.3	0.425
W16X100	100	29.4	17	10.4	0.585	0.985
W16X89	89	26.2	16.8	10.4	0.525	0.875
W16X77	77	22.6	16.5	10.3	0.455	0.76
W16X67	67	19.6	16.3	10.2	0.395	0.665
W16X57	57	16.8	16.4	7.12	0.43	0.715
W16X50	50	14.7	16.3	7.07	0.38	0.63
W16X45	45	13.3	16.1	7.04	0.345	0.565
W16X40	40	11.8	16	7	0.305	0.505
W16X36	36	10.6	15.9	6.99	0.295	0.43
W16X31	31	9.13	15.9	5.53	0.275	0.44
W16X26	26	7.68	15.7	5.5	0.25	0.345
W14X1000	1000	293	25.2	19.1	4.25	6.29
W14X930	930	273	24.3	18.9	4.11	5.84
W14X873	873	257	23.6	18.8	3.94	5.51
W14X808	808	238	22.8	18.6	3.74	5.12
W14X730	730	215	22.4	17.9	3.07	4.91
W14X665	665	196	21.6	17.7	2.83	4.52
W14X605	605	178	20.9	17.4	2.60	4.16
W14X550	550	162	20.2	17.2	2.38	3.82
W14X500	500	147	19.6	17.0	2.19	3.50
W14X455	455	134	19	16.8	2.02	3.21
W14X426	426	125	18.7	16.7	1.88	3.04
W14X398	398	117	18.3	16.6	1.77	2.85
W14X370	370	109	17.9	16.5	1.66	2.66
W14X342	342	101	17.5	16.4	1.54	2.47
W14X311	311	91.4	17.1	16.2	1.41	2.26
W14X283	283	83.3	16.7	16.1	1.29	2.07
W14X257	257	75.6	16.4	16.0	1.18	1.89
W14X233	233	68.5	16	15.9	1.07	1.72
W14X211	211	62	15.7	15.8	0.98	1.56
W14X193	193	56.8	15.5	15.7	0.89	1.44
W14X176	176	51.8	15.2	15.7	0.83	1.31
W14X159	159	46.7	15	15.6	0.75	1.19
W14X145	145	42.7	14.8	15.5	0.68	1.09
W14X132	132	38.8	14.7	14.7	0.65	1.03
W14X120	120	35.3	14.5	14.7	0.59	0.94
W14X109	109	32	14.3	14.6	0.53	0.86
W14X99	99	29.1	14.2	14.6	0.485	0.78
W14X90	90	26.5	14	14.5	0.44	0.71
W14X82	82	24	14.3	10.1	0.51	0.855
W14X74	74	21.8	14.2	10.1	0.45	0.785
W14X68	68	20	14	10	0.415	0.72
W14X61	61	17.9	13.9	10	0.375	0.645
W14X53	53	15.6	13.9	8.06	0.37	0.66
W14X48	48	14.1	13.8	8.03	0.34	0.595
W14X43	43	12.6	13.7	8	0.305	0.53
W14X38	38	11.2	14.1	6.77	0.31	0.515
W14X34	34	10	14	6.75	0.285	0.455
W14X30	30	8.85	13.8	6.73	0.27	0.385
W14X26	26	7.69	13.9	5.03	0.255	0.42
W14X22	22	6.49	13.7	5	0.23	0.335
W12X336	336	98.9	16.8	13.4	1.78	2.96
W12X305	305	89.5	16.3	13.2	1.63	2.71
W12X279	279	81.9	15.9	13.1	1.53	2.47
W12X252	252	74.1	15.4	13.0	1.40	2.25
W12X230	230	67.7	15.1	12.9	1.29	2.07
W12X210	210	61.8	14.7	12.8	1.18	1.90
W12X190	190	56	14.4	12.7	1.06	1.74
W12X170	170	50	14	12.6	0.96	1.56
W12X152	152	44.7	13.7	12.5	0.87	1.4
W12X136	136	39.9	13.4	12.4	0.79	1.25
W12X120	120	35.2	13.1	12.3	0.71	1.11
W12X106	106	31.2	12.9	12.2	0.61	0.99
W12X96	96	28.2	12.7	12.2	0.55	0.9
W12X87	87	25.6	12.5	12.1	0.52	0.81
W12X79	79	23.2	12.4	12.1	0.47	0.735
W12X72	72	21.1	12.3	12.0	0.43	0.67
W12X65	65	19.1	12.1	12	0.39	0.605
W12X58	58	17	12.2	10	0.36	0.64
W12X53	53	15.6	12.1	10	0.345	0.575
W12X50	50	14.6	12.2	8.08	0.37	0.64
W12X45	45	13.1	12.1	8.05	0.335	0.575
W12X40	40	11.7	11.9	8.01	0.295	0.515
W12X35	35	10.3	12.5	6.56	0.3	0.52
W12X30	30	8.79	12.3	6.52	0.26	0.44
W12X26	26	7.65	12.2	6.49	0.23	0.38
W12X22	22	6.48	12.3	4.03	0.26	0.425
W12X19	19	5.57	12.2	4.01	0.235	0.35
W12X16	16	4.71	12	3.99	0.22	0.265
W12X14	14	4.16	11.9	3.97	0.2	0.225
W10X112	112	32.9	11.4	10.4	0.755	1.25
W10X100	100	29.3	11.1	10.3	0.68	1.12
W10X88	88	26	10.8	10.3	0.605	0.99
W10X77	77	22.7	10.6	10.2	0.53	0.87
W10X68	68	19.9	10.4	10.1	0.47	0.77
W10X60	60	17.7	10.2	10.1	0.42	0.68
W10X54	54	15.8	10.1	10	0.37	0.615
W10X49	49	14.4	10	10	0.34	0.56
W10X45	45	13.3	10.1	8.02	0.35	0.62
W10X39	39	11.5	9.92	7.99	0.315	0.53
W10X33	33	9.71	9.73	7.96	0.29	0.435
W10X30	30	8.84	10.5	5.81	0.3	0.51
W10X26	26	7.61	10.3	5.77	0.26	0.44
W10X22	22	6.49	10.2	5.75	0.24	0.36
W10X19	19	5.62	10.2	4.02	0.25	0.395
W10X17	17	4.99	10.1	4.01	0.24	0.33
W10X15	15	4.41	9.99	4	0.23	0.27
W10X12	12	3.54	9.87	3.96	0.19	0.21
W8X67	67	19.7	9.00	8.28	0.570	0.935
W8X58	58	17.1	8.75	8.22	0.51	0.81
W8X48	48	14.1	8.5	8.11	0.4	0.685
W8X40	40	11.7	8.25	8.07	0.36	0.56
W8X35	35	10.3	8.12	8.02	0.31	0.495
W8X31	31	9.13	8	8	0.285	0.435
W8X28	28	8.25	8.06	6.54	0.285	0.465
W8X24	24	7.08	7.93	6.5	0.245	0.4
W8X21	21	6.16	8.28	5.27	0.25	0.4
W8X18	18	5.26	8.14	5.25	0.23	0.33
W8X15	15	4.44	8.11	4.02	0.245	0.315
W8X13	13	3.84	7.99	4	0.23	0.255
W8X10	10	2.96	7.89	3.94	0.17	0.205
W6X25	25	7.34	6.38	6.08	0.32	0.455
W6X20	20	5.87	6.2	6.02	0.26	0.365
W6X16	16	4.74	6.28	4.03	0.26	0.405
W6X15	15	4.43	5.99	5.99	0.23	0.26
W6X12	12	3.55	6.03	4	0.23	0.28
W6X9	9	2.68	5.9	3.94	0.17	0.215
W5X19	19	5.56	5.15	5.03	0.27	0.43
W5X16	16	4.71	5.01	5	0.24	0.36
W4X13	13	3.83	4.16	4.06	0.28	0.345

Click here for a printable version of our shape availability chart Steel Availability Chart.pdf

Global Leaders in Structural Steel: Producing Sections as Large as W14x1000 and W36x925

Grade Availability

Length Capabilities

Shapes and Sizes

Structural Shapes

Bars and Rods

Flats

Logistics

Wire Solutions
